EIS and EIT.
One instrument,
one workflow.

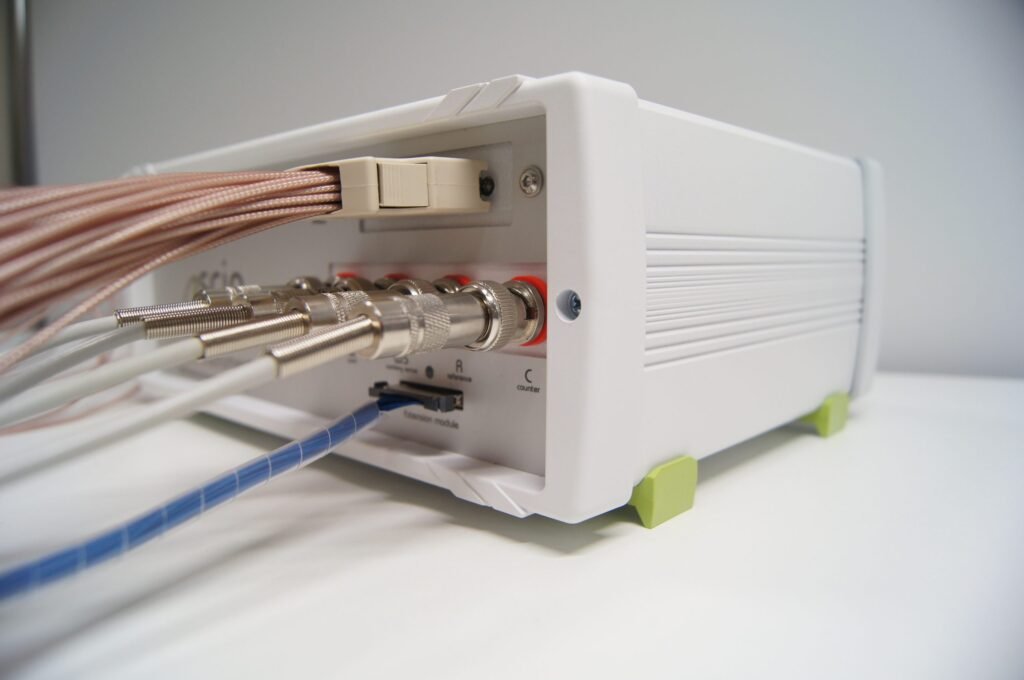

The ISX-3 EIT brings two Sciospec core competencies together: the proven EIS performance of the ISX-3 plus genuine EIT capability through a highly flexible any-to-any multiplexer — switchable between full-spec EIS and dedicated EIT mode.
- Full-featured ISX-3 (100 mHz – 10 MHz, extendable to 40 / 100 MHz)
- Any-to-any 32 or 64-port multiplexer for 2/3/4-electrode impedance
- Dedicated EIT mode with injection matrix as channel sweeps per frame
32 or 64
EIT-MUX Ports
100 mHz – 10 MHz
Frequency Range
0.01 %
Base Precision
up to 2048 pts
Sweep Resolution
The ISX-3 measurement core, plus a real EIT engine
The ISX-3 EIT combines a full ISX-3 frontend with a highly flexible any-to-any multiplexer and a dedicated EIT mode — so the same instrument runs single-point EIS, multi-port multiplexed EIS and EIT frames without changing setup.
Full ISX-3 core
EIS PERFORMANCE
Lab-grade impedance spectroscopy as the measurement core
The ISX-3 EIT keeps the full ISX-3 IF frontend: 100 mHz to 10 MHz (extendable to 40 or 100 MHz), 2/3/4-electrode configurations, up to 2048 frequencies per sweep, 0.01 % base precision and ± 1 V DC bias. EIS performance is identical to a standalone ISX-3.
Any-to-any EIT-MUX
32 OR 64 PORTS
Highly flexible multiplexer for arbitrary electrode arrangements
An integrated any-to-any multiplexer with 32 or 64 ports lets every port be assigned to any role in 2-, 3- or 4-electrode impedance measurements — and switches between role assignments per frame for dedicated EIT injection patterns.
EIT mode + reconstruction
TIME- & FREQUENCY-DIFFERENCE EIT
Built-in EIT mode with software for image reconstruction
A dedicated EIT mode runs the injection matrix as channel sweeps per frame. Ships with Sciospec software for time- and frequency-difference EIT image reconstruction, plus MATLAB code so you can import your data straight into EIDORS.
Technical Specifications
Core electrical parameters and EIT capabilities for the ISX-3 EIT base configuration. Full datasheet available on request.
Parameter
Specification
Notes
GENERAL
Base Platform
Full ISX-3 with IF frontend
EIS performance identical to standalone ISX-3
Electrode Configurations
2 / 3 / 4-electrode
Per measurement, any port assignment
Interfaces
USB · Ethernet · WLAN (opt.)
Wireless option available
IMPEDANCE (EIS) FRONTEND
Frequency Range
100 mHz – 10 MHz
Extendable to 40 MHz or 100 MHz
Impedance Range
mΩ … TΩ
IF frontend
DC Bias
± 1 V
On excitation
Resolution
up to 2048 frequencies / sweep
Logarithmic or linear
Base Precision
0.01 %
Typical
EIT-MUX
Architecture
Any-to-any multiplexer
Any port → injection / measurement / reference
Channel Count
32 or 64 ports
Configurable at order time
Modes
Multiplexed EIS · dedicated EIT
Injection matrix as channel sweeps per frame
Application Interface
ExtensionPort
Application-specific front-ends
SOFTWARE & RECONSTRUCTION
EIT Software
Time- & frequency-difference EIT reconstruction
Included Sciospec EIT software
EIDORS Integration
MATLAB code provided
Import data directly into EIDORS
Control / Automation
Software suite · COM API
Java · C · Python · LabVIEW · MATLAB
Where the ISX-3 EIT fits in
Wherever EIS and EIT need to live on the same bench — phantom studies, biomedical bioimpedance, process tomography, organ-on-chip and EIT algorithm research — the ISX-3 EIT replaces two separate instruments with one configurable platform.
EIT phantom studies & method development
Combine standard or custom EIT phantom tanks with the integrated 32/64-port any-to-any MUX for reconstruction algorithm development, electrode-pattern studies and teaching.
Bioimpedance & process EIT
Multiplexed EIS + dedicated EIT in one instrument — for biomedical bioimpedance, process tomography and industrial monitoring where you need both methods on the same setup.
Organ-on-chip & barrier integrity
TEER and barrier-integrity studies on arrayed wells benefit from any-to-any port assignment with the same instrument used by groups developing modular EIT systems.
Algorithm research & EIDORS workflows
Ships with time- and frequency-difference EIT reconstruction software, plus MATLAB code so research groups can import data directly into EIDORS.
Configure your ISX-3 EIT
Choose the frequency range, EIT-MUX channel count, frontpanel connectors and the phantom / fixture accessories that match your EIT or multiplexed EIS workflow.
Loading configurator…
Complete your setup
Combine the ISX-3 EIT with EIT phantom tanks, AC-coupling interfaces, test fixtures and ExtensionPort front-ends to match your EIT or multiplexed EIS workflow.
Standard EIT phantom tank
Pre-built phantom tank for algorithm development, teaching and reproducibility studies. [Product-specific accessory image needed]
Details
Custom EIT phantom tank
Phantom tanks built to your geometry, electrode count and material for application-specific EIT studies.
Details
AC coupling interface (1st 4-point ch.)
External AC coupling interface for the first 4-point channel — for galvanically isolated EIS work.
Details
Compensation kit
Calibration / compensation kit for high-accuracy EIS measurements through the EIT-MUX.
Details
From a benchtop ISX-3 EIT to your EIT OEM platform
The ISX-3 EIT is both a lab instrument and a measurement architecture that scales into customer products where EIS and EIT need to live on the same hardware.
When you move from benchtop to product, we help migrate the architecture into dedicated OEM electronics with tailored firmware, connectors and reconstruction pipeline for your target environment.
- 01
EIT method validation
Validate your EIT method on a standard ISX-3 EIT with the chosen MUX channel count, phantom and reconstruction workflow.
- 02
Custom front-end & electrode array
Add application-specific front-ends, electrode arrays and fixtures through the ExtensionPort for your tomography target.
- 03
Embedded EIT OEM platform
Migrate the ISX-3 EIT architecture into a dedicated EIT OEM platform with tailored electronics, firmware and reconstruction stack.
Published reference
Modular EIT system architectures built around Sciospec EIT hardware
EIS + EIT in real research workflows
Research groups use Sciospec EIT hardware as the building block for modular EIT system architectures — from open-source prototyping to full product integration — and for organ-on-chip TEER monitoring trusted by Merck and Roche.
Challenge
Build a modular EIT system that can scale from a prototype phantom rig to integrated, productized tomography hardware.
SCIOSPEC ROLE
Sciospec EIT hardware — including the ISX-3 EIT — provides the EIS + EIT measurement core, any-to-any multiplexer and reconstruction software the system is built on.
RESULT
A published, modular EIT system architecture and a high-throughput TEER reference platform with readout times under 30 seconds.
USER VOICE
- "Having full EIS and a real EIT engine in one instrument — with EIDORS-ready data — changes how quickly you can iterate on tomography methods."
Sciospec product team
[Specific user attribution needed]
Additional work covers organ-on-chip TEER screening, hands-on training at IWIS 2025 with HTWK Leipzig and the Max Planck Institute Leipzig, and modular EIT systems across the Sciospec EIT range.
Individual FAQ
Short technical answers to the questions we hear most often about the ISX-3 EIT.
What's the difference between the ISX-3 and the ISX-3 EIT?
The ISX-3 EIT is a full ISX-3 plus a highly flexible any-to-any multiplexer with 32 or 64 ports and a dedicated EIT mode that runs the injection matrix as channel sweeps per frame. EIS performance is identical to a standalone ISX-3.
Can it run both EIS and EIT on the same setup?
How are EIT images reconstructed?
How many electrode ports does it support?
32 or 64 ports, configurable at order time. Any port can be assigned to any role (injection, measurement, reference) in 2-, 3- or 4-electrode impedance.
What frequency range and precision does it offer?
100 mHz to 10 MHz standard, extendable to 40 MHz or 100 MHz. Up to 2048 frequencies per sweep, 0.01 % base precision and ± 1 V DC bias — identical electrical performance to the ISX-3 core.
How is it controlled and automated?
