Fast. Precise. Patient-safe EIS for clinical research.
The proven ISX-3 platform, engineered with medical-grade isolation and additional safety measures specified in accordance with DIN EN 60601-1 — built for in-vivo and patient-adjacent research where electrical safety is non-negotiable.
- Medical-grade isolated power supply and isolated USB / Ethernet interfaces
- 100 mHz … 10 MHz IF frontend, extendable to 40 or 100 MHz
- Optional battery operation — up to 3 h of measurement, mains-free
Not a medical product. Not intended for diagnosis or treatment. Additional safety measures ease applications for exemptions for experiments on patients.
DIN EN 60601-1
Safety Reference
100 mHz – 10 MHz
Frequency Range
0.01 %
Base Precision
up to 3 h
Battery Runtime
The ISX-3 measurement core — re-engineered around patient safety
The Medical Research ISX-3 keeps the full ISX-3 IF frontend and 4-port BNC interface, and surrounds it with a shielded enclosure, isolated supplies and isolated interfaces so you can take lab-grade EIS into clinical research environments without losing performance.
Medical-grade isolation
PATIENT-SAFE FRONTEND
Designed end-to-end for electrical safety in clinical research
Medical-grade isolated AC/DC power supply (12 V DC) with software-controlled switch-off, isolated full-speed USB, an Ethernet interface with included medical-grade network isolator and external AC-coupling frontend for full galvanic isolation of the patient circuit.
Dual 4-point channels
AC + DC COUPLED
Two 4-point channels with optional AC-coupled multiplexer
First channel AC-coupled for patient safety, second channel DC-coupled and multiplexable. Optional 16, 32 or 64 AC-coupled MUX channels expand the system for multi-electrode patient measurements such as bioimpedance, EIT-adjacent setups and forearm impedance studies.
IsoIO + battery + software
INTEGRATION & MOBILITY
Mobile, isolated I/O for real clinical setups
Optional battery pack delivers up to 3 hours of mains-free measurement. The IsoIO module provides 12 isolated digital outputs, 12 isolated digital inputs with pull-ups, 4 isolated bidirectional I²C ports and an isolated digital supply rail. Controlled via the Sciospec software suite and COM API (Java, C, Python, LabVIEW, MATLAB).
Technical Specifications
Core electrical parameters and supported measurement protocols for the ISX-3 base configuration. Full datasheet available on request.
Parameter
Specification
Notes
GENERAL
Base Platform
ISX-3 with IF frontend
4-port BNC interface
Electrode Configurations
2 / 3 / 4-electrode
Two 4-point channels: AC + DC coupled
Interfaces
Isolated USB · Ethernet (incl. medical-grade isolator)
Optional WiFi
IMPEDANCE (EIS) FRONTEND
Frequency Range
100 mHz – 10 MHz
Extendable to 40 MHz or 100 MHz
Impedance Range
mΩ … TΩ
300 dB dynamic range
Base Precision
0.01 %
Typical
DC Bias
± 1 V
On DC-coupled channel
Resolution
up to 2048 frequencies / sweep
Logarithmic or linear
MEDICAL SAFETY
Safety Reference
DIN EN 60601-1:2013-12
Additional safety measures specified accordingly
Power Supply
Medical-grade isolated 12 V DC AC/DC
Software-controlled switch-off
USB / Ethernet
Isolated full-speed USB · Ethernet with medical-grade isolator
Galvanic isolation
Patient Circuit
External AC coupling frontend
Galvanic isolation of patient circuit
Enclosure
Shielded measurement frontend
Mechanical and EMI safety
OPTIONS & INTEGRATION
Multiplexer
16 / 32 / 64 AC-coupled channels
Optional, patient-safe
Battery
Integrated pack, up to 3 h
Mains-free operation
IsoIO Module
12 iso DO · 12 iso DI · 4 iso I²C · iso 3.3 V rail
HW sync · programmable I/O (UART · SPI · I²C)
Control / Automation
Software suite · COM API
Java · C · Python · LabVIEW · MATLAB
Where the Medical Research ISX-3 fits in
Wherever electrical safety, isolation and mobility matter — bioimpedance, bioreactor monitoring, ingestible-device development and patient-adjacent EIS studies — the Medical Research ISX-3 brings lab-grade impedance spectroscopy into clinical research.
Bioimpedance & in-vivo studies
Forearm, body composition and tissue impedance measurements where galvanic isolation of the patient circuit is required. Used in published forearm impedance studies with 32-channel MUX setups.
Bioreactor & cell-culture monitoring
Non-invasive monitoring of bioreactors and cell cultures with the precision of the ISX-3 platform and isolation suitable for clinical-research labs.
Ingestible & implantable device research
Reference instrument for development of advanced biomedical devices such as ingestible electronics — for example the MiGUT capsule combining ingestible electronics with bioimpedance sensing.
Mobile clinical research
Battery operation, isolated USB / Ethernet and isolated I/O make it suitable for mobile setups, bedside studies and patient-adjacent measurements outside the standard lab.
Configure your Medical Research ISX-3
Choose the frequency range, the optional AC-coupled multiplexer for multi-electrode patient setups and the medical-grade safety and mobility options that match your study.
Loading configurator…
Complete your setup
Combine the Medical Research ISX-3 with patient-safe multiplexers, isolated I/O, battery operation and cabling to match your clinical-research workflow.
AC-coupled multiplexer (16/32/64 ch)
Patient-safe multiplexers expanding the system for multi-electrode setups such as bioimpedance arrays and forearm studies. [Product-specific accessory image needed]
Details
Integrated battery pack
Up to 3 hours of mains-free measurement for mobile clinical research and bedside studies.
Details
IsoIO module
12 isolated digital outputs, 12 isolated digital inputs with pull-ups, 4 isolated bidirectional I²C ports and isolated 3.3 V rail. [Product-specific accessory image needed]
Details
Medical-grade network isolator
Included for Ethernet operation — keeps the network interface galvanically isolated from the patient environment.
Details
From a benchtop Medical Research ISX-3 to your medical OEM platform
The Medical Research ISX-3 is not only a clinical-research instrument — it’s a measurement architecture that scales into customer products where electrical safety, isolation and patient-adjacent operation are core requirements.
When you move from benchtop to medical device, we help migrate the architecture into dedicated OEM electronics with tailored isolation, certifications and form factor for your target environment.
- 01
Clinical-research validation
Validate your patient-adjacent method on a standard Medical Research ISX-3 with the chosen MUX, isolation and mobility options.
- 02
Custom frontends & fixtures
Add application-specific isolated frontends, electrode adapters and fixtures suited to your bioimpedance or in-vivo study.
- 03
Embedded medical OEM platform
Migrate the architecture into a dedicated OEM platform with tailored isolation, certifications and form factor for your medical device program.
Application brief

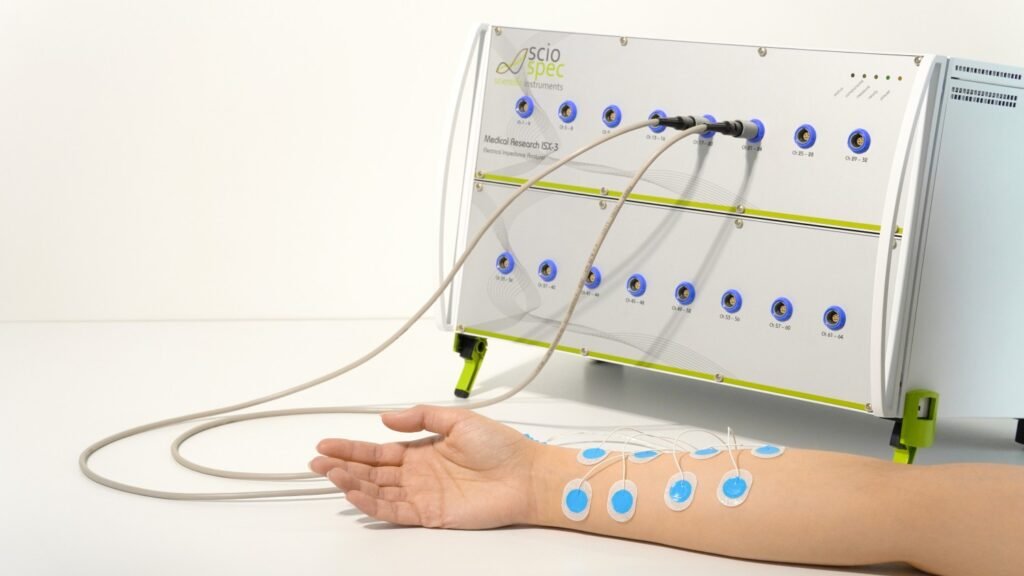

Forearm impedance measurement with Medical Research ISX-3 + 32-ch MUX
Patient-safe EIS in real clinical-research workflows
Researchers use the ISX-3 across plant biology, biosensing and clinical research. One published example tracks conductivity changes in plant tissue exposed to pulsed electric fields (PEFs) — using the ISX-3 as the primary EIS instrument.
Challenge
Capture multi-electrode bioimpedance changes on a human forearm during hand movements — with full galvanic isolation of the patient circuit.
SCIOSPEC ROLE
The Medical Research ISX-3 with a 32-channel AC-coupled multiplexer provides the isolated EIS frontend, control software and isolated I/O used throughout the setup.
RESULT
A simple, reproducible setup for multi-electrode forearm impedance — documented in the Sciospec application brief.
USER VOICE
- "Lab-grade impedance spectroscopy, but engineered so we can take it from the bench into patient-adjacent studies without compromising on safety."
Sciospec product team
[Specific user attribution needed]
Additional published work covers non-invasive bioreactor monitoring and the MiGUT ingestible capsule — all using the Medical Research ISX-3 as the trusted reference EIS platform.
Individual FAQ
Short technical answers to the questions we hear most often about the ISX-3.
Is the Medical Research ISX-3 a certified medical device?
No. The ISX-3 is not a medical product and is not intended for diagnosis or treatment of patients. The Medical Research ISX-3 includes additional safety measures specified in accordance with DIN EN 60601-1:2013-12, easing applications for exemptions for experiments on patients.
How is patient safety implemented?
Through a shielded enclosure, a medical-grade isolated 12 V DC AC/DC power supply with software-controlled switch-off, isolated full-speed USB, an Ethernet interface with included medical-grade network isolator, an external AC-coupling frontend for galvanic isolation of the patient circuit and the optional IsoIO module with hardware sync.
What's the difference vs the standard ISX-3?
Same measurement core and IF frontend, plus a 4-port BNC interface, two 4-point channels (AC-coupled + multiplexed DC-coupled), optional 16/32/64-channel AC-coupled MUX, optional battery operation up to 3 h and the medical-grade isolation features listed above.
Can it run mains-free?
Yes. With the integrated battery pack the system runs up to 3 hours mains-free, which is useful for bedside studies and mobile clinical research.
What frequency range does it cover?
100 mHz to 10 MHz standard, extendable to 40 MHz or 100 MHz, with a 300 dB dynamic range and 0.01 % base precision — identical to the ISX-3 core.
How is it controlled and automated?
Through the included Sciospec software suite and the COM interface for Java, C, Python, LabVIEW, MATLAB and similar environments. The IsoIO module also supports programmable I/O (UART, SPI, I²C) and hardware synchronization.
