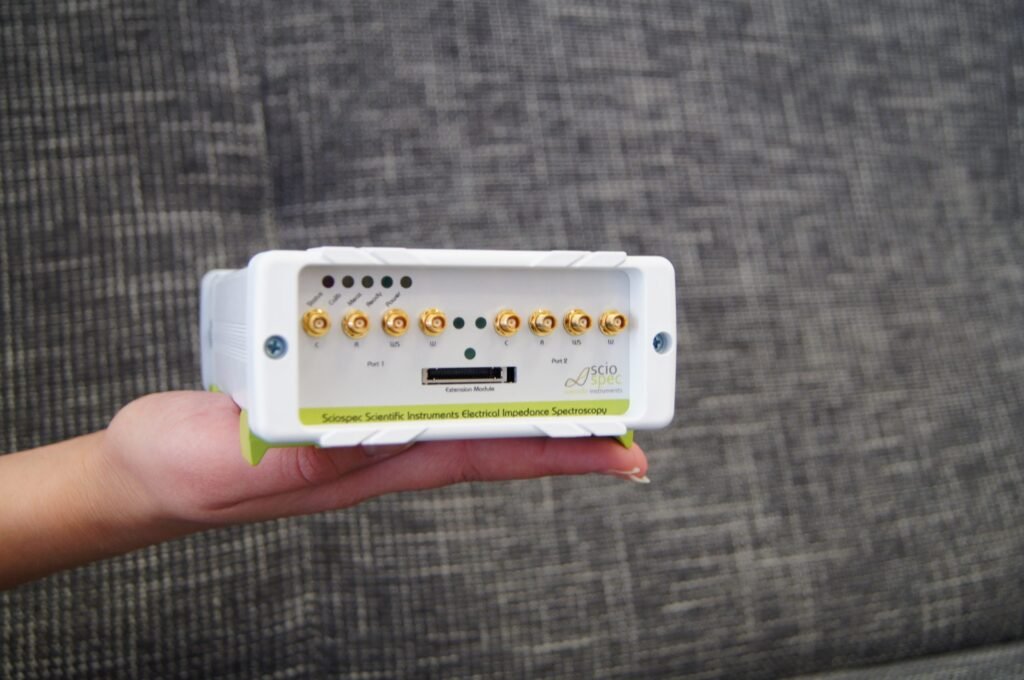

Lab-grade EIS.
In the palm of your hand.
The ISX-3mini packs a fully-featured impedance analyzer into an ultra-compact chassis — built for field work, integrated setups and embedded research where there’s no room for bulky lab equipment.
- Ultra-compact impedance analyzer with two multiplexed MCX channels
- 100 mHz … 10 MHz frontend, extendable to 40 MHz · 300 dB dynamic range
- ExtensionPort for application-specific frontends and OEM integration
100 mHz – 10 MHz
Frequency Range
300 dB
Dynamic Range
0.01 %
Base Precision
up to 2048 freq./sweep
Resolution
A palm-sized analyzer with the full ISX-3 measurement core
The ISX-3mini condenses the IF frontend, ExtensionPort and Sciospec software stack into an ultra-portable form factor — ideal for field setups, mobile rigs and embedded research where bench instruments don’t fit.
IF frontend
mΩ … TΩ COVERAGE
Full ISX-class performance in an ultra-compact chassis
The ISX-3mini IF frontend covers 100 mHz to 10 MHz out of the box and can be extended to 40 MHz. It supports 2-, 3- and 4-electrode setups with mΩ to TΩ measurement range, 300 dB dynamic range and ± 1 V DC bias.
ExtensionPort
USER-ACCESSIBLE INTERFACE
A direct path for application-specific front-ends
The fully user-accessible ExtensionPort carries 2/3/4-electrode signals, supply rails and digital IOs (optionally I²C or UART) — so you can build custom front-ends or attach Sciospec adapters such as the MEArack or ECISadapter.
Sciospec software
SUITE + COM API
Control and automate from any environment
The Sciospec software suite handles measurement setup, data export and analysis. The COM interface integrates the ISX-3mini with Java, C, Python, LabVIEW, MATLAB and similar environments for automated workflows.
Technical Specifications
Core electrical parameters and supported measurement protocols for the ISX-3mini base configuration. Full datasheet available on request.
Parameter
Specification
Notes
GENERAL
Channels
2 multiplexed (MCX interface)
2-/3-/4-point configurations
Electrode Configurations
2 / 3 / 4-electrode
User-selectable
Interfaces
Full Speed USB · Ethernet · WLAN
Optional wireless
IMPEDANCE (EIS) FRONTEND
Frequency Range
100 mHz – 10 MHz
Extendable to 40 MHz or 100 MHz
Impedance Range
mΩ … TΩ
IF frontend
Dynamic Range
300 dB
–
DC Bias
± 1 V
–
Resolution
up to 2048 frequencies / sweep
Logarithmic or linear
Base Precision
0.01 %
Typical
INTEGRATION
Application Interface
ExtensionPort
User-accessible signals, IOs, supply
Digital I/O
IOport · 2× NTC temperature ports
External sensors
Hardware Sync
Optional ultra-fast sync
[Product-specific connector layout needed]
Control / Automation
Software suite · COM API
Java · C · Python · LabVIEW · MATLAB
Where the ISX-3mini fits in
From portable EIS rigs and embedded research setups to chip-based assays and electrode arrays — the ISX-3mini brings ISX-3-class performance to places where a benchtop analyzer just isn’t an option.
Portable & field measurements
Take lab-grade EIS out of the bench rack and into the field, the greenhouse or the production line — the ISX-3mini fits anywhere a full ISX-3 would not.
Chip- and MEA-based assays
Combine the ISX-3mini with the MEArack or ECISadapter for cell-based and electrode-array experiments through the ExtensionPort.
Embedded R&D rigs
Integrate the ISX-3mini into custom enclosures, robots or moving setups where a compact, USB- or Ethernet-controlled analyzer is the only option.
Multichannel routing
Pair the mini with a 32- or 64-channel any-to-any multiplexer for sequential multichannel impedance on larger electrode arrays.
Configure your ISX-3mini
Loading configurator…
Complete your setup
MCX cable sets
MCX–BNC (0.8 m), MCX–4 mm banana (1 m) and MCX–Kelvin clip leads (1 m) for component, liquid and chip measurements. [Product-specific accessory image needed]
Details
Chip adapters
MEArack for multi-electrode arrays and ECISadapter for ECIS chips — attached through the ExtensionPort.
Details
External multiplexers
32- or 64-channel any-to-any multiplexers extend the ISX-3mini into massive-multichannel sequential measurements.
Details
Compensation kit
Open / short / load standards for precise frontend compensation. [Product-specific accessory image needed]
Details
From a pocket-sized analyzer to your embedded product
When you’re ready to move from a portable unit to a product, we help migrate the ISX-3mini architecture into dedicated OEM electronics — tailored firmware, connectors and certifications for your target environment.
- 01
Portable validation
Validate your method on a standard ISX-3mini with MCX cables, the chosen adapter and the Sciospec software suite.
- 02
ExtensionPort front-end
Attach an application-specific front-end through the ExtensionPort — chip carrier, sensor head or custom enclosure.
- 03
Embedded OEM module
Migrate the ISX-3mini measurement core into a dedicated OEM module with custom electronics, firmware and connectors for your product.
[Relevant reference case needed]
Portable EIS workflow using the ISX-3mini
ISX-3mini in real research workflows
[Relevant reference case needed] — researchers use the ISX-3mini for portable bioimpedance studies, field measurements and embedded chip-based experiments. Reference write-ups for the ISX-3mini specifically are pending.
Challenge
[Product-specific challenge needed] — typically: deliver lab-grade EIS in a portable or embedded setup where a benchtop instrument does not fit.
SCIOSPEC ROLE
The ISX-3mini provides the EIS measurement core, MCX channels and ExtensionPort interface to the application-specific frontend.
RESULT
[Product-specific result needed].
USER VOICE
- The ISX-3mini puts the full power of a laboratory grade impedance analyzer in the palm of your hand."
Sciospec product team
[Specific user attribution needed]
The mini shares its measurement core with the ISX-3 — most ISX-3 publications and application notes also describe the methods the mini supports.
Individual FAQ
Short technical answers to the questions we hear most often about the ISX-3mini.
How is the ISX-3mini different from the ISX-3?
Same measurement core, different chassis. The mini is ultra-compact with two multiplexed MCX channels instead of the ISX-3’s frontpanel connectors, and ships with a 10 MHz or 40 MHz frequency option (no 100 MHz extension).
What's the frequency range and dynamic range?
Which electrode configurations are supported?
2-, 3- and 4-electrode setups, user-selectable across both MCX channels.
How do I attach a custom sensor or chip?
Can the ISX-3mini drive larger electrode arrays?
Yes — pair it with a 32- or 64-channel any-to-any multiplexer for sequential multichannel measurements. For true parallel channels, see the ISX-5.
Can the mini be automated from Python or MATLAB?
How would you like to continue?
Choose the next step that fits where you are in your project — from first conversation to OEM integration.
Tell us about your idea
Share your portable or embedded project — we’ll help scope the right ISX-3mini setup.
Configure your ISX-3mini
Choose the frequency range, cable set, chip adapter and options that fit your setup.
Talk to us about OEM
Discuss embedded electronics, custom front-ends and ExtensionPort integration around the mini.
