Precision LCR Meters
High-end accuracy in a compact bench meter — and a scalable platform when you need automated multi-object testing with up to 256 ports. Built on the same measurement core as our impedance analyzers.
- 100 µHz … 10 MHz (extendable to 40 MHz)
- R: 1 mΩ … 1 TΩ · C: 10 fF … 1 kF · L: 1 nH … 1 TH

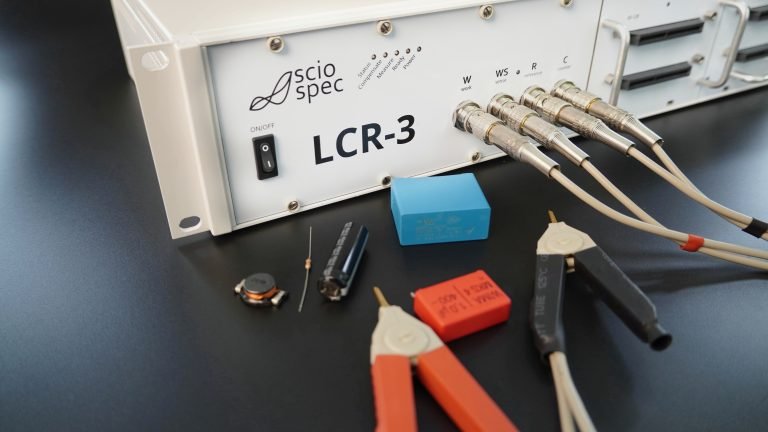

- Integrated multiplexers up to 256 ports (LCR-3)
- 0.01% base precision
- 2/3/4-terminal configurations
- SCPI + Sciospec API for full automation
Architecture & flexibility

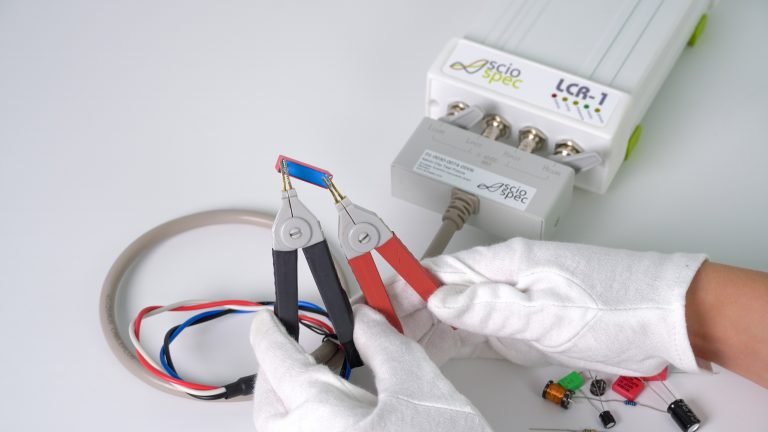

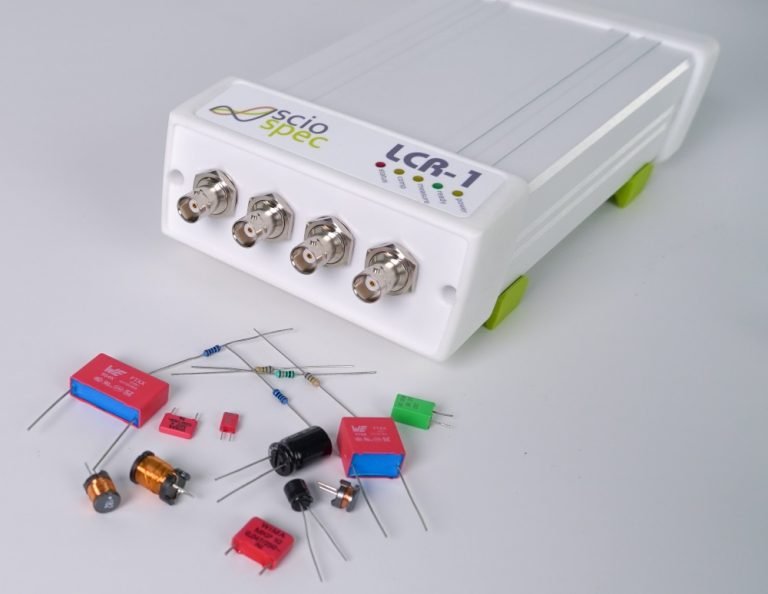

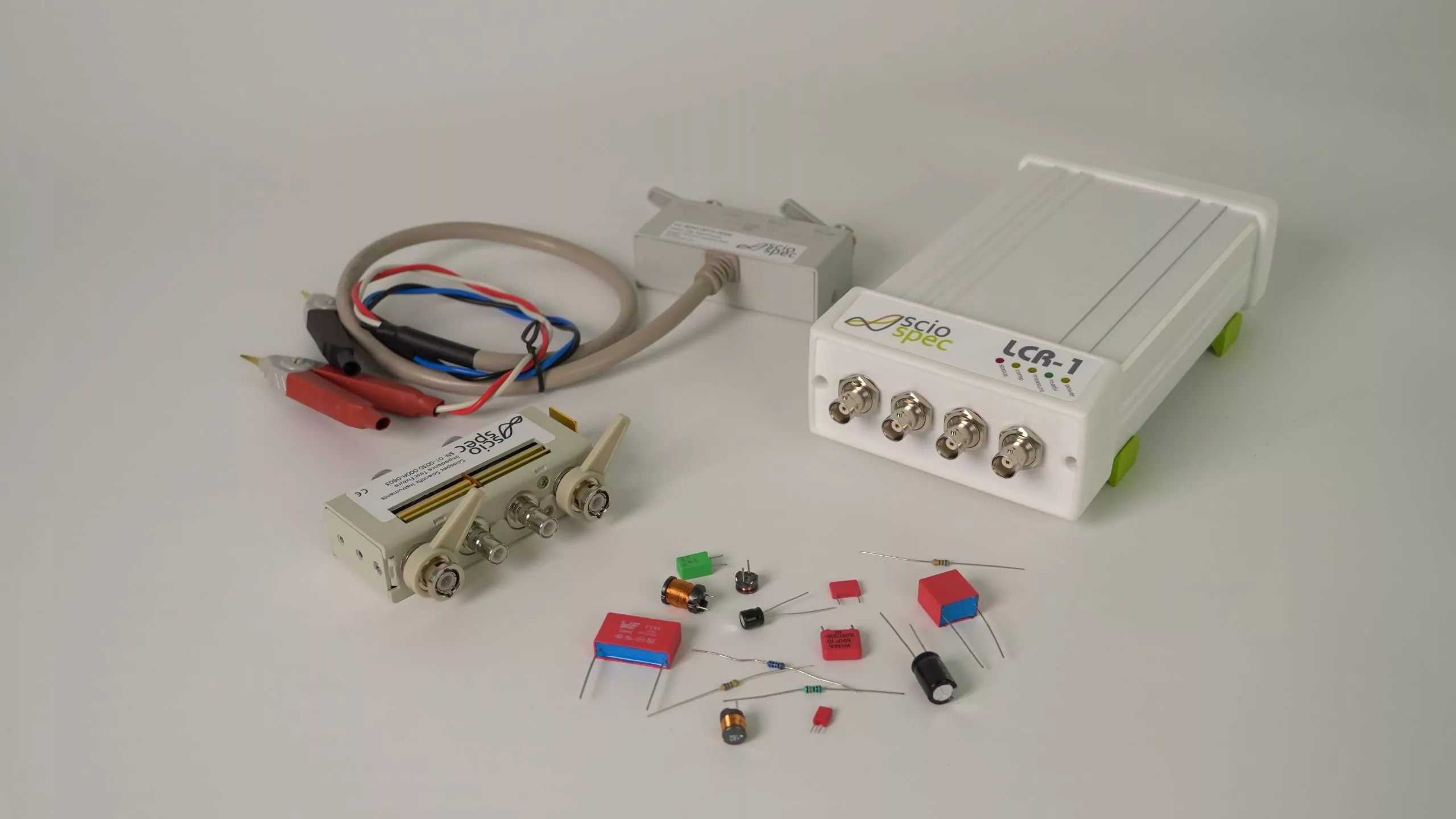

Built on the same precision core as the Sciospec impedance analyzers — the LCR-1 brings high-end accuracy to your bench, the LCR-3 brings it to your production line.
What is an LCR meter?
An LCR meter is a specialised electronic test instrument used to measure the inductance (L), capacitance (C) and resistance (R) of passive components and other test objects. In practice, real-world components are rarely ‘pure’ — most measurements characterise combinations like RC or LC series and parallel networks. The meter applies an AC stimulus to the device under test (DUT), measures the resulting voltage and current, and analyses the phase relationship between them. From magnitude and phase it derives the complex impedance and reports L, C, R, ESR, dissipation factor (D), quality factor (Q) and related parameters according to a selected equivalent-circuit model. More advanced instruments support multi-frequency sweeps similar to impedance spectroscopy, making them suitable for characterising frequency-dependent component behaviour beyond a single test point.
Equivalent-circuit models, ESR and Q
Precise characterisation requires the right equivalent-circuit model. The series model (Rs–Ls or Rs–Cs) is preferred for low-impedance parts where internal series resistance dominates losses; the parallel model (Rp–Lp or Rp–Cp) suits high-impedance parts where leakage dominates. Quality factor (Q) and dissipation factor (D) describe how efficient a part is at storing vs. dissipating energy, and ESR — equivalent series resistance — is often the deciding parameter in power electronics where it drives self-heating and ageing.
- Series model — for low-impedance DUTs (large caps, small inductors)
- Parallel model — for high-impedance DUTs (small caps, large inductors)
- D / tan δ — energy dissipated vs. energy stored
- Q — efficiency of an inductor (inverse of D)
- ESR — critical for capacitor lifetime in power electronics
Application scenarios — from R&D to production
LCR measurement spans the full lifecycle of a passive component — from material research to incoming QA, end-of-line testing and field troubleshooting. Sciospec LCR meters slot into all of these contexts thanks to programmable test conditions, automation interfaces and a wide range of fixtures and adapters.
- Component characterisation — caps, inductors, resistors, transformers
- Quality control & manufacturing — ATE integration, pass/fail binning
- Circuit design & troubleshooting — verifying parasitics in filters and networks
- Material & sensor testing — dielectric, MEMS, automotive sensors
- Academic & industrial research — characterising novel structures
What to look for in an LCR meter spec
Headline numbers rarely tell the whole story. Accuracy and speed both depend on frequency and on the absolute impedance of the DUT — most manufacturers specify across a very wide range but only achieve full accuracy inside specific zones of that range. The most useful artefact for comparing instruments is the accuracy-contour plot, which shows where in the frequency–impedance plane each accuracy class applies. Look for: 4-terminal Kelvin support, DC bias capability, sweep depth and point density, supported test fixtures, and remote interfaces (SCPI, API) for automation.
Technical specifications
Rule of thumb: choose an LCR meter when you need to qualify components at defined operating points; choose an impedance analyzer when the spectrum itself is the answer.
Embed Sciospec measurement into your product
Building sensitive analog hardware from scratch slows your roadmap. Embed our validated measurement core directly — tailored channel counts, custom form factors, specialised connectivity — and ship faster.
20+
years building measurement hardware
Custom
form factors & connectivity
OEM
white-label & private branding
ISO
9001 and 13485 certified
Related products
Frequently Asked Questions
What is an LCR meter and what does it measure?
An LCR meter is a specialized electrical test instrument used to measure the fundamental parameters of passive components: inductance (L), capacitance (C), and resistance (R). Professional instruments apply a sinusoidal AC excitation signal to a device under test (DUT) to calculate impedance (Z), phase angle, and various derived parameters such as the dissipation factor (D), quality factor (Q), and equivalent series resistance (ESR). These measurements are essential for characterizing component behavior under realistic AC operating conditions rather than simple DC states.
They are widely used in laboratories, production environments, and quality control because they provide high accuracy and repeatability for electrical parameter measurements.
These instruments are available as handheld LCR meters for portable use, as well as benchtop systems for higher stability, extended frequency range, and automation.
How does an LCR meter work in practice?
Most LCR meters operate by exciting the component with a known test frequency and voltage, then measuring the magnitude and phase relationship between current and voltage. From these measurements, the instrument derives inductance, capacitance, and resistance, which are commonly referred to as the primary parameters of the component. Depending on configuration, additional parameters such as impedance magnitude or phase angle may also be displayed.
What is the difference between an LCR meter and a multimeter?
The key difference between an LCR meter and a multimeter lies in how measurements are performed and what parameters are resolved.
A multimeter typically measures resistance using a DC signal and may provide basic capacitance measurement based on charge-discharge timing. This approach is sufficient for rough checks but does not represent real operating conditions for most components. Multimeters do not allow control over test frequency, signal level, or phase behavior.
An LCR meter, by contrast, applies an AC signal at one or more selectable test frequencies. This allows the meter to evaluate how a component behaves under realistic electrical excitation. Because inductance and capacitance are inherently frequency-dependent, this distinction is critical for accurate results.
Additionally, LCR meters can measure phase angle, impedance, and related parameters that a multimeter cannot resolve. For in-circuit testing or component verification in production, most LCR meters offer significantly better accuracy, resolution, and control than a general-purpose multimeter.
In short, multimeters are general diagnostic tools, while LCR meters are specialized instruments optimized for precise component measurements.
When should I use an LCR meter instead of an impedance analyzer?
The choice depends on whether the application requires broadband spectroscopy or discrete-frequency component characterization. You should utilize an LCR meter for high-throughput production testing, incoming quality control, and R&D scenarios where measurements at specific, standard test frequencies are sufficient. An impedance analyzer is necessary for advanced research involving wideband frequency sweeps, complex equivalent circuit modeling (e.g., Nyquist or Bode plots), and identifying unknown resonances in materials or electrochemical systems.
What are the key specifications to consider when choosing an LCR meter?
Selecting the appropriate instrument depends on your specific DUT requirements, particularly the required test frequency range, basic measurement accuracy, and test signal levels (voltage and current). Critical operational factors include measurement speed—especially for automated production—and the availability of 4-terminal Kelvin connections to eliminate lead resistance errors. For industrial or research environments, the support for remote interfaces (SCPI/API) and the availability of specialized test fixtures for different component geometries are also primary considerations.
What is the difference between series and parallel LCR measurement modes?
Series and parallel modes refer to the equivalent circuit models the instrument uses to interpret the measured impedance. The optimal choice depends on the impedance of the DUT: the series model is generally used for low-impedance components (like large capacitors or small inductors) where lead resistance dominates losses, while the parallel model is used for high-impedance components (like small capacitors or large inductors) where leakage resistance is the primary loss factor. Selecting the correct mode is vital for the accurate derivation of L, C, and R values from the raw impedance data.
What do ESR, dissipation factor (D), quality factor (Q), and tan delta mean in LCR measurements?
These parameters define the efficiency and loss characteristics of a component. Equivalent Series Resistance (ESR) represents all internal resistive losses in a capacitor or inductor, which is critical for power applications. The dissipation factor (D) and tan delta measure the ratio of energy dissipated to energy stored, while the quality factor (Q) is the inverse of D, indicating the efficiency of an inductor. These values are frequency-dependent and provide deeper insight into component reliability and heat generation than nominal L or C values alone.
How often should an LCR meter be calibrated, and which standards apply?
Calibration intervals depend on your internal quality management system, the stability of your environment, and specific regulatory requirements, though an annual interval is common in professional labs. Accreditation to ISO/IEC 17025 is the global standard for calibration competence, ensuring traceability to national standards. In specific regions or industries, standards such as ANSI/NCSL Z540.1 may also apply to define calibration documentation and uncertainty budgets.
How do test frequency and test signal level affect LCR measurement results?
Measurement results vary because real-world components exhibit frequency-dependent behavior due to parasitics, material properties, and core saturation in inductors. The signal level (test voltage or current) can also influence results, particularly in non-linear components or materials where higher signal levels might induce self-heating or shift the operating point. It is essential to characterize components at frequencies and levels that match their intended application to ensure the data is representative of real-world performance.
What are common applications of LCR meters in production testing and quality control?
In production, LCR meters are used for high-speed incoming inspection of passive components, automated pass/fail testing, and binning based on specified tolerances. They are often integrated into automated test equipment (ATE) to verify PCB assembly integrity or to qualify the performance of sensors and filters before final product integration. This ensures that only components meeting strict electrical parameters enter the supply chain, reducing manufacturing defects and improving long-term reliability.
Can an LCR meter be integrated into automated test systems or OEM equipment?
Yes, professional LCR meters are designed for seamless integration via remote interfaces such as LAN, USB, or GPIB using standardized SCPI command sets. Integration success depends on the instrument’s support for hardware triggers, fast measurement speeds, and the ability to handle data logging and automated binning sequences. For OEM applications, modular “engines” can be embedded directly into larger systems to provide on-board LCR measurement for sensor readout or self-diagnostics.
How do 2-wire, 4-wire, and guarded measurements differ in LCR testing?
A 2-wire setup is sufficient for high-impedance DUTs where lead resistance is negligible. A 4-terminal Kelvin connection is mandatory for low-impedance measurements to eliminate the effects of test lead and contact resistance, which can otherwise introduce significant errors. Guarding is an additional technique used to eliminate the effects of stray capacitance and leakage paths to ground, ensuring that only the current flowing through the DUT is measured.
What limitations do handheld LCR meters have compared to benchtop precision instruments?
Handheld meters offer portability for field service and quick diagnostics but typically sacrifice frequency range, test signal flexibility, and absolute accuracy compared to benchtop models. Benchtop instruments provide higher stability, more advanced automation interfaces, and the precision required for rigorous R&D or high-volume production characterization. The choice depends on whether the priority is convenience and mobility or traceable precision and laboratory-grade performance.
Can I use an LCR meter for dielectric or sensor characterization, not just discrete components?
LCR meters are highly effective for characterizing materials and sensors by measuring capacitance and tan delta (dielectric loss) as a function of environmental changes or frequency. They are frequently used in research for polymers, composites, and MEMS devices to track performance and material aging. Whether an LCR meter is sufficient depends on if the required frequencies are within its selectable range and if the material’s response is relatively linear within the test signal levels provided.
What safety and compliance considerations apply when using LCR meters in industrial environments?
Instrumentation must comply with IEC 61010 safety categories, which define the protection level against voltage transients in different electrical environments (e.g., CAT I for lab vs. higher categories for mains-connected industrial floors). Compliance also involves adhering to voltage and current limits to prevent DUT damage and ensuring that all calibration documentation meets industry-specific quality standards. The operational environment—including temperature, humidity, and electromagnetic interference—should be controlled to ensure measurements remain within the instrument’s specified accuracy limits.

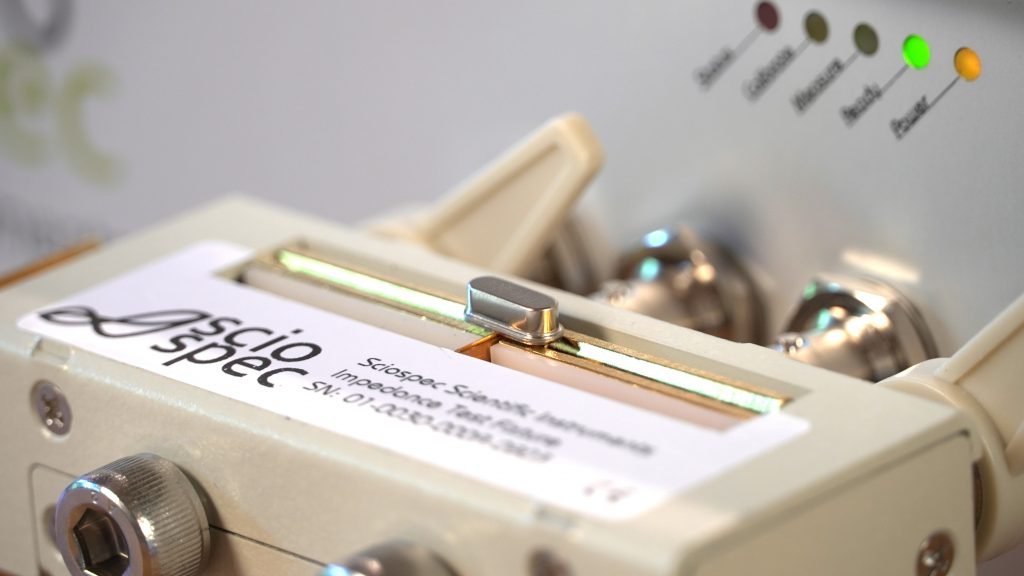

How do I perform open and short compensation to eliminate test fixture parasitics?
Open and short compensation is a critical procedure used to remove the residual impedance of test leads and fixtures from the final measurement results. To perform this, you first execute an “Open” measurement with the terminals disconnected to characterize stray capacitance and conductance, followed by a “Short” measurement with a zero-impedance shorting bar to characterize residual resistance and inductance. Modern digital LCR meters then mathematically subtract these parasitic values from the device under test (DUT) measurement. Failing to perform this compensation, especially at high frequencies or when measuring very low impedance, will result in significant measurement offsets and invalid data.
How does applying a DC bias impact the characterization of inductors and capacitors?
Applying a DC bias (either voltage or current) allows you to characterize how a component performs under real-world operating conditions, such as a capacitor in a power supply rail or an inductor in a DC-DC converter. For inductors, a DC current bias can reveal the saturation point where inductance begins to drop, while for certain capacitors (like MLCCs), a DC voltage bias can significantly reduce the effective capacitance. Instruments must be designed to handle these bias levels without damaging the internal sensing circuitry, often requiring specialized internal or external bias sources to maintain measurement stability.
What are the critical trade-offs between measurement speed, resolution, and accuracy?
In precision LCR measurement, there is an inherent trade-off between the time taken for a measurement and the quality of the data; increasing the integration time or averaging reduces noise and improves resolution and accuracy. For high-speed production testing, you must prioritize speed to maintain throughput, which may require accepting a wider uncertainty budget. Conversely, R&D characterization typically prioritizes high resolution and low uncertainty at the expense of measurement time. Understanding this relationship is essential for selecting the correct measurement settings for your specific application requirements.
What is the difference between a list sweep and a continuous frequency sweep?
A list sweep allows the LCR meter to measure at a series of predefined, discrete frequency points or test levels, which is highly efficient for automated production testing where only specific operating points are relevant. In contrast, a continuous frequency sweep—more common in impedance analyzers—provides a broadband view across a range, which is necessary for identifying unknown resonances or characterizing material transitions. While advanced LCR meters like the LCR-1 support list sweeps to simulate frequency-dependent behavior, they are optimized for discrete point precision rather than the broad spectral analysis of a full impedance analyzer.
How do I calculate a total measurement uncertainty budget for traceable LCR characterization?
A total uncertainty budget involves more than the instrument’s base accuracy; it must account for test frequency, signal levels, fixture parasitics, and environmental factors such as temperature and humidity. You must combine the instrument’s specified accuracy at the specific operating point (derived from accuracy-contour plots) with the uncertainties introduced by lead compensation, contact resistance, and calibration traceability. This rigorous approach is a mandatory requirement for maintaining compliance with ISO/IEC 17025 and ensures that measurement results are comparable across different laboratories and distributed production sites.
How accurate are LCR meters?
The accuracy of an LCR meter depends on the instrument class, frequency range, test conditions, and measurement setup. High-quality digital LCR meters are designed to deliver high accuracy across defined impedance and frequency ranges when used within their specified limits.
Several factors influence measurement accuracy:
- Test frequency: Component behavior varies with frequency, and accuracy is highest when the selected frequency matches the intended application.
- Signal voltage: Excessive voltage can introduce non-linear effects, while insufficient voltage may reduce signal-to-noise ratio.
- Calibration: Proper calibration compensates for internal offsets and fixture effects.
- Connection method: Using appropriate probes, sockets, or four-terminal connections reduces lead and contact resistance error.
- Measurement speed and filters: Averaging and filtering improve accuracy at the expense of speed.
Most LCR meters are optimized for passive component testing under stable conditions. When operated within specification, they provide reliable, repeatable measurements suitable for laboratories, development, and production environments.
It is important to note that accuracy is not uniform across the entire range. Each instrument has defined limits where measurements remain valid, and results outside those limits may be affected by increased error.
How do you measure inductance using an LCR meter?
To measure inductance using an LCR meter, the inductor is connected to the meter using appropriate probes or terminals, ensuring a stable and repeatable connection. The meter applies an AC signal at a defined test frequency and measures the resulting voltage and current response.
From this response, the instrument calculates inductance based on the measured impedance and phase information. The user typically selects the desired parameter display mode so that inductance is shown directly as the primary value.
Several practical considerations affect inductance measurement:
- Frequency selection: Inductance values can vary with frequency due to core material and parasitic effects. Using programmable frequencies allows characterization under relevant conditions.
- Signal level: Excessive voltage may drive magnetic cores into saturation, affecting accuracy.
- Connection method: Short leads and proper fixture compensation reduce measurement error.
- In-circuit effects: Measuring inductance in circuit may introduce parallel or series paths that influence results.
By controlling frequency, signal level, and measurement configuration, an LCR meter provides accurate and repeatable inductance measurements suitable for both development and production testing.
Not sure how your sensor fits the eight-bank architecture?
Frequently asked questions
01 What's the difference between an LCR meter and a multimeter?
A multimeter measures resistance with a DC signal and offers only rough capacitance via charge/discharge timing — useful for diagnostics but not for characterising components under realistic operating conditions.
An LCR meter applies an AC excitation at selectable frequencies, measures both magnitude and phase, and resolves inductance, capacitance, ESR, Q and D. Because L and C are inherently frequency-dependent, this is essential for any kind of design verification or production QA.
02 When should I use an LCR meter instead of an impedance analyzer?
Use an LCR meter for high-throughput production testing, incoming QA, and R&D scenarios where measurements at specific operating frequencies are sufficient. Choose an impedance analyzer when you need wideband sweeps, full Nyquist / Bode plots, equivalent-circuit fitting, or are investigating unknown resonances.
03 Which specs matter most when choosing an LCR meter?
Test frequency range, base accuracy, supported signal levels and bias, measurement speed, and the availability of 4-terminal Kelvin connections. For automation, look at remote interfaces (SCPI / API), trigger handling and supported test fixtures. The accuracy-contour plot is the single most useful chart to compare instruments.
04 Series vs. parallel measurement modes — what's the difference?
They refer to the equivalent-circuit model used to interpret the measured impedance. Series mode suits low-impedance DUTs where lead and contact resistance dominate losses; parallel mode suits high-impedance DUTs where leakage is the main loss path. Picking the wrong model gives you mathematically correct, physically misleading numbers.
05 How do open and short compensation work?
Compensation removes the residual impedance of your cables and fixture. An ‘Open’ measurement with the terminals disconnected captures stray capacitance and conductance; a ‘Short’ with a zero-impedance bar captures residual resistance and inductance. The instrument then subtracts these from every measurement. Skipping this step is one of the most common causes of bad data at high frequency or low impedance.
06 How does DC bias affect inductor and capacitor measurements?
DC bias lets you characterise components in something close to their real operating conditions. Inductors with magnetic cores can saturate under DC current — you’ll see inductance drop. Many MLCC capacitors lose significant capacitance under DC voltage. Without bias, you’re characterising the part on the bench, not in the circuit.
07 Can Sciospec LCR meters be integrated into ATE or OEM systems?
Yes. Both the LCR-1 and LCR-3 expose a full SCPI command set plus the Sciospec API with Python and C# examples. The LCR-3 is built for rack-mount and ATE integration with integrated multiplexers up to 256 ports, hardware triggers, and pass/fail logic. The core measurement engine is also available as an embedded OEM module.
08 How often should an LCR meter be calibrated?
Annual calibration is standard practice in professional labs. ISO/IEC 17025 is the global benchmark for calibration competence and traceability. Sciospec instruments ship factory-calibrated and can be re-certified through our service team.
